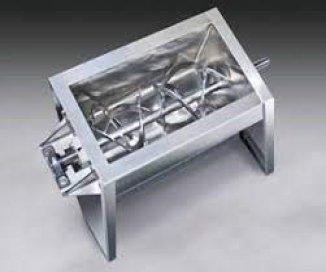

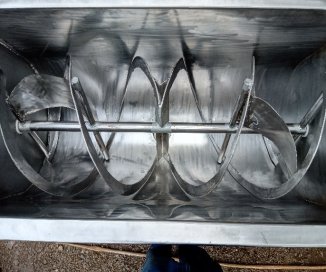

Ribbon Blender Mixer (ribbon blade mixer) including Horizontal U trough mixer comprises a double helical ribbon agitator that rotates within. Ribbon Agitators consist of a set of inner and outer helical ribbons, it is referred to as a double helical ribbon agitator. The gap between the ribbon’s outer edge and the internal wall of the container ranges between 3 to 6 mm depending on the application. Vertical powder mixers are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge.
• Available in working capacity of 5 litres – 25,000 litres
• Available in all grades of stainless steel, carbon steel, and special alloy steels.
• Ribbon agitator for centre discharge.
• Designed for atmospheric operation.
• Top cover depending on the length of the blender.
• Centrally located Flush bottom discharge valve.
• Stuffing boxes with easily disassembled housings. Pure Teflon gland packing is provided.
• Stainless steel surfaces are polished to desired standards. All exterior non-stainless surfaces are painted with enamel paint.
• Squirrel Cage, Three Phase Induction Motors suitable for 415 Volts, 50 Hz.
• Worm Reduction Gearbox.
• Single Speed Drive.
• Blender is mounted on supports providing adequate discharge clearance.
Ribbon-type Blenders are used in a wide range of industrial applications in pharmaceutical, cosmetic, chemical, food, nutraceutical, herbal, agriculture, and allied industries. The ribbon mixer’s flexibility for blending powders with its ability to perform heating, cooling, coating, and other processes makes it a very popular blender.
The following are the major applications of the Ribbon Blender:
• Pharmaceuticals Application: Bulk Drugs, API, and Nutraceuticals
• Cosmetics Application: Talcum Powder, Eye shadow, Face powders, Laundry detergents
• Chemicals Application: Dyes, Intermediates, Pigments, Pesticides, Fine Chemicals, Rubber Chemicals, Abrasives, Engineered plastic resins, Epoxy resins, Carbon black, Fire retardants, Polyethylene, Chemicals, Gypsum, PVC compounding, Cleaning compounds, Plastic powders
• Food Applications: Infant formula, Cocoa mix, Instant salad dressing, Cake mixes, Seasonings, Flavourings, Gelatine, Milk Powder, Pet foods, Bakery premixes, Cake mixes, Instant breakfast cereals, Spice blends, Dietary supplements, Instant drink blends, Spices, Dried food products
• Agricultural Application: Insecticides, Pesticides, Fertilizers, Pesticides and herbicides, Bird seeds
• Other Applications: Handling large Dry and wet powder volumes, crystalline products, Low-viscosity paste and liquid in chemicals.
